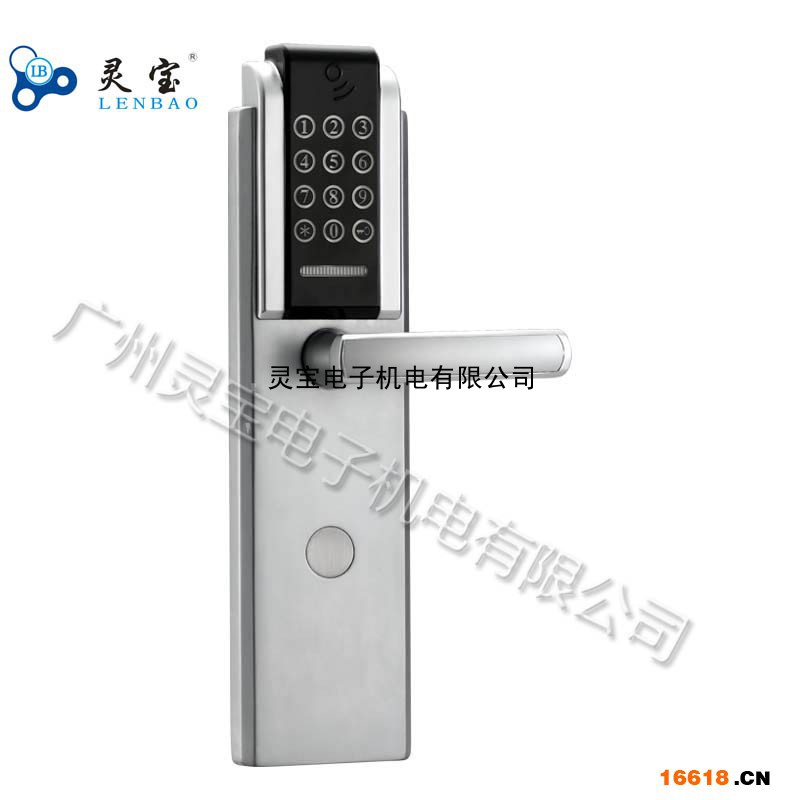

公寓密碼鎖 LW8116-41RMY

產品名稱： LW8116-41RMY

產品簡介：

適用場所：辦公室門 財務室門 家庭房門 藥品庫門 政府機要室門 總經理辦公室門 智能小區

產品材質：鋅合金材料，標準密度6.75g/cm3

可選顏色：青古銅 紅古銅 金色 銀色 鍍真金

門厚要求：適合安裝在38mm-1000mm厚的門上

開門方式：密碼，卡片或機械鑰匙

驅動方式：電機雙向驅動

密碼容量：50個

卡片容量：200張

工作溫度：-20℃— +55℃

工作濕度：10%-90%.

抗靜電：>15000V

工作電壓：直流6V（4節堿性AA電池）

靜態功耗：小于40uA

動態功耗：小于200mA

電池壽命：正常連續開啟10000次左右

欠壓指示：當工作電壓低于4.8V左右時，開門會有弱電提示，此時還能開門200次左右

機械鎖體：天地桿防盜鎖體/五鎖舌三聯動鎖體，防插斜舌設計

電路板芯片： 荷蘭Philips 的 Mifare One 原裝進口芯片

適用卡型：Mafire 1卡

產品尺寸：350*90mm



Product features

Application places: office door, accounting office door, family door, drug depository door, government confidential room door, general manager's office door, intelligent village

Product material: zinc alloy material, standard density 6.75 g/cm 3

Optional color: green bronze， red bronze，gold ,silver ,gilt

Door thick requirement: suitable for installation in 38 mm - 1000 mm thick door

Open the door way: password, card or mechanical keys

Driving mode: motor two-way drive

Password capacity: 50

Card capacity: 200 copies

Working temperature: - 20 ℃ - + 55 ℃

Work humidity: 10% -90%.

Antistatic: > 15000 v

Working voltage: dc 6 V (section 4 basic AA battery)

Static power: less than 40 uA

Dynamic power consumption: less than 200 mA

Battery life: normal continuous open 10000 times or so

Undervoltage instructions: when work voltage is lower than 4.8 V around, open the door there will be weak current hint, now still can open the door 200 times or so Mechanical lock body: heaven and earth bar anti-theft lock body/five lock tongue three linkage lock body, prevent plug oblique tongue design

Circuit chip: Dutch Philips Mifare One of original installation import chip

Applicable card type: Mafire 1 card

Product size:350 * 90mm
